Multimiter Oscilloscope

Description

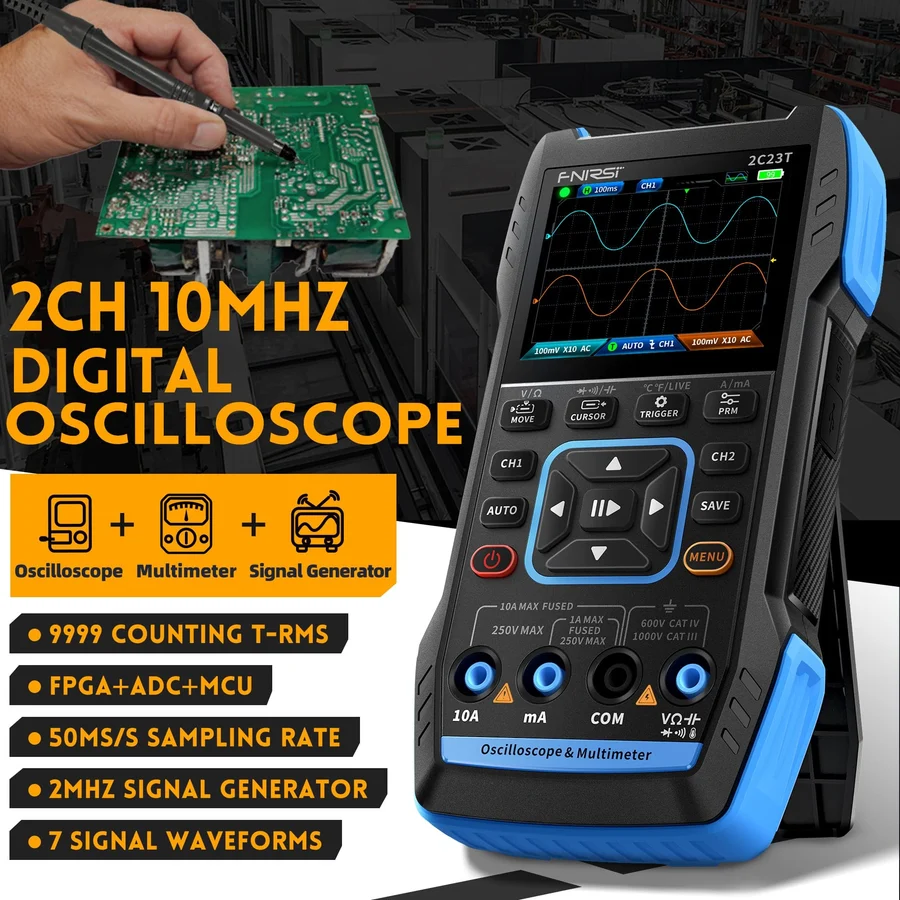

The multimeter oscilloscope is a versatile 3-in-1 handheld test instrument designed for electronic maintenance, field troubleshooting, electrical repair, and hardware debugging. Combining a dual-channel oscilloscope, a high-precision digital multimeter, and a DDS function signal generator into an ergonomic, rugged housing, it serves as a complete portable diagnostic setup.

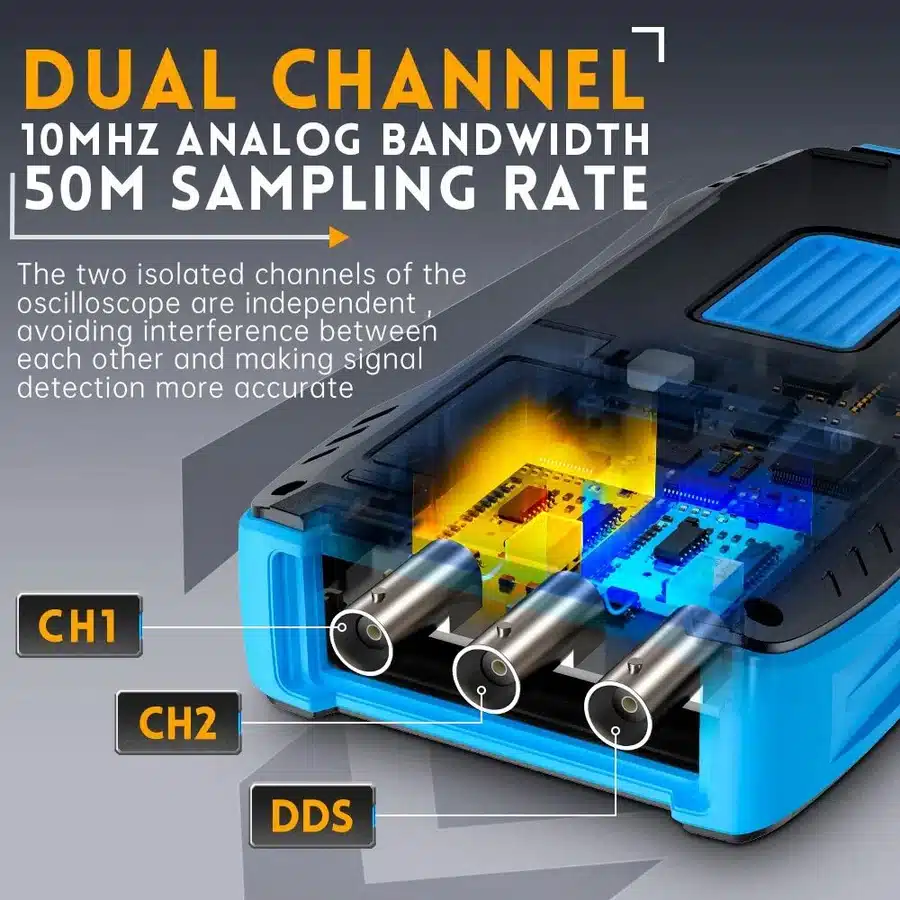

1. Dual-Channel Oscilloscope Mode

Analog Bandwidth: 10 MHz per channel (20 MHz overall equivalent)

Real-Time Sampling Rate: 50 MSa/s

Channels: 2 Independent Channels

Storage Depth: 32 kpts

Input Impedance: 1\text{ M}\Omega \parallel 16\text{ pF}

Coupling Modes: AC / DC

Vertical Sensitivity: 20\text{ mV/div} – 10\text{ V/div}(1\times robe)up to 100\text{ V/div} (10\timesprobe)

Time Base Range: 50\text{ ns/div} – 10\text{ s/div}

Trigger Modes: Auto, Normal, Single

Trigger Types: Rising Edge, Falling Edge

Max Test Voltage: \pm40\text{V} (1\times probe), \pm400\text{V} (10\times probe)

One-Key AUTO: Automatically configures vertical sensitivity and timebase to capture and lock onto unknown input signals.

2. Digital Multimeter Mode

Display Resolution: 9999 Counts True-RMS

DC Voltage: 9.999\text{ mV} – 999.9\text{ V}

AC Voltage: 9.999\text{ mV} – 750.0\text{ V

DC / AC Current: 9.999\text{ mA} – 9.999\text{ A}

Resistance: 999.9\,\Omega – 99.99\text{ M}\Omega

Capacitance: 9.999\text{ nF} – 99.99\text{ mF}

Continuity & Diode Testing: Audible continuity buzzer for low-resistance checks and forward voltage drop reading for diodes.

Temperature Measurement: -55^\circ\text{C}to +1300^\circ\text{C}(-67^\circ\text{F} to +2372^\circ\text{F} using K-type thermocouple probe.

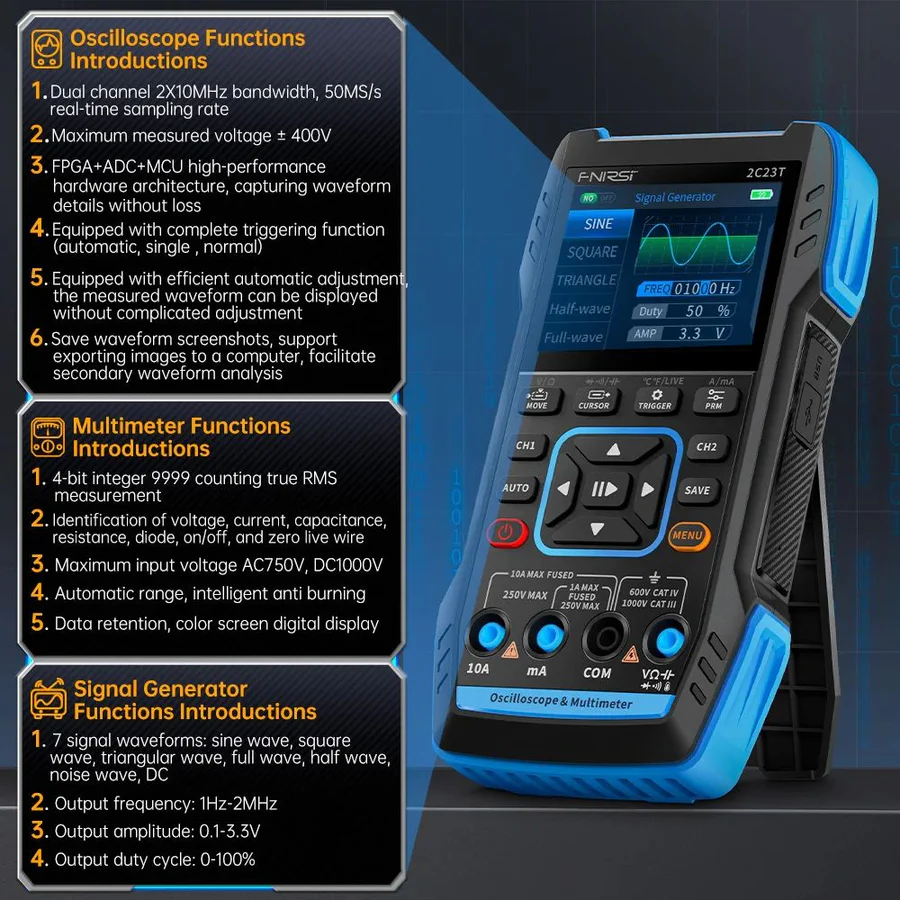

3. DDS Signal Generator Mode

Waveform Output: 7 Standard Waveforms (Sine, Square, Triangle, Full-wave, Half-wave, Noise, DC)

Frequency Range: 1\text{ Hz} – 2\text{ MHz (Sine wave up to 2\text{ MHz}; other waveforms up to 1\text{ MHz})

Frequency Resolution: 1\text{ Hz}

Amplitude Output: 0.1\text{ V} – 3.3\text{ V} adjustable

Duty Cycle: 0\% – 100\adjustable for square and pulse waves

Hardware & Power

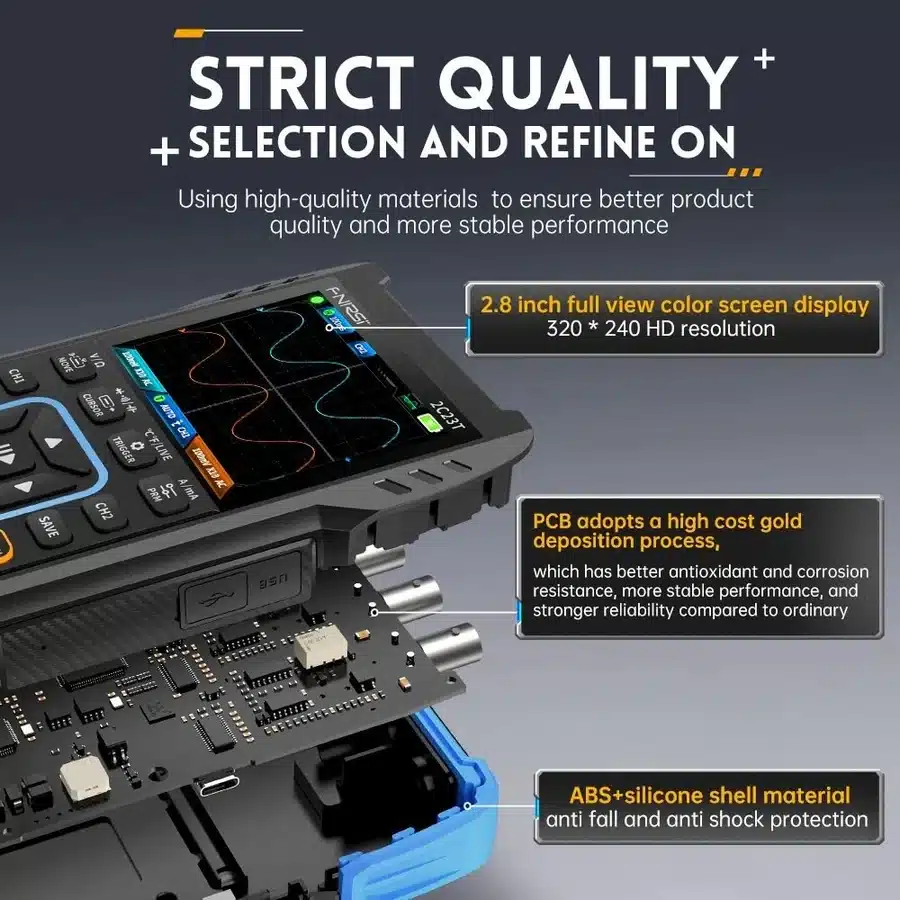

Display: 2.8-inch color TFT LCD screen ($320 \times 240 resolution) with adjustable brightness.

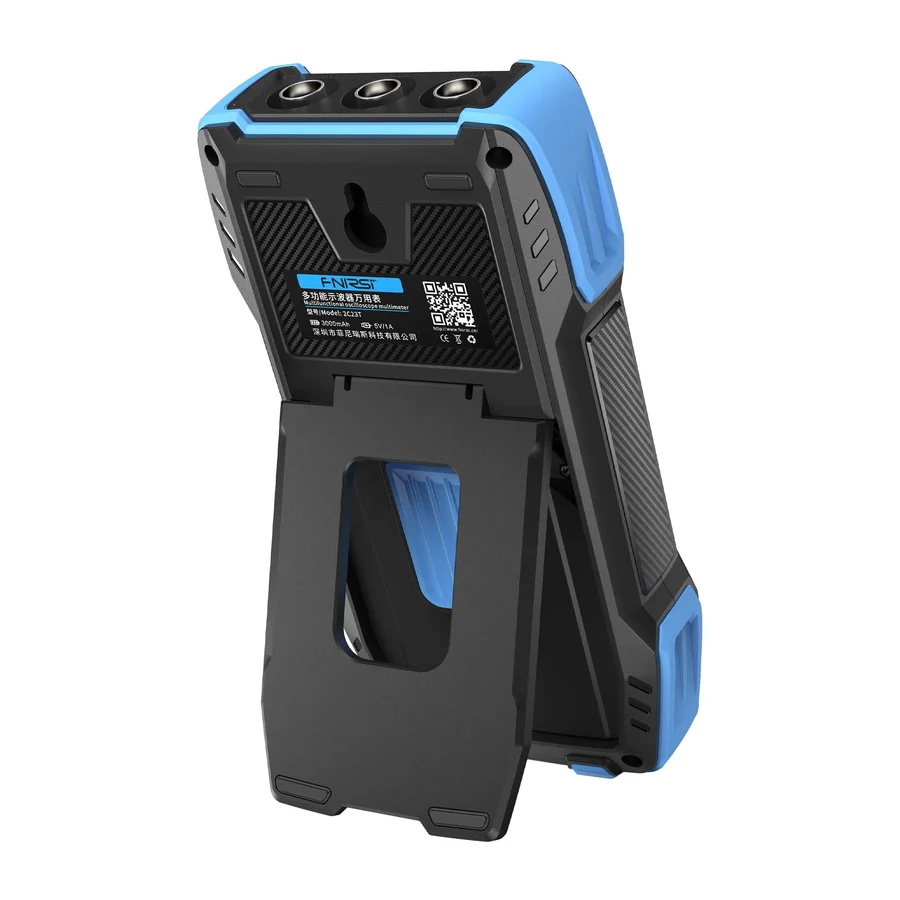

Rugged Housing: Anti-slip silicone outer case offering drop protection for tough field environments.

Power Supply: Built-in 3000\text{ mAh} rechargeable lithium battery providing up to 6 hours of continuous operation.

Interface & Storage: USB Type-C port for battery charging (5\text{V}/1\text{A}$), waveform screenshot exports, and firmware updates.

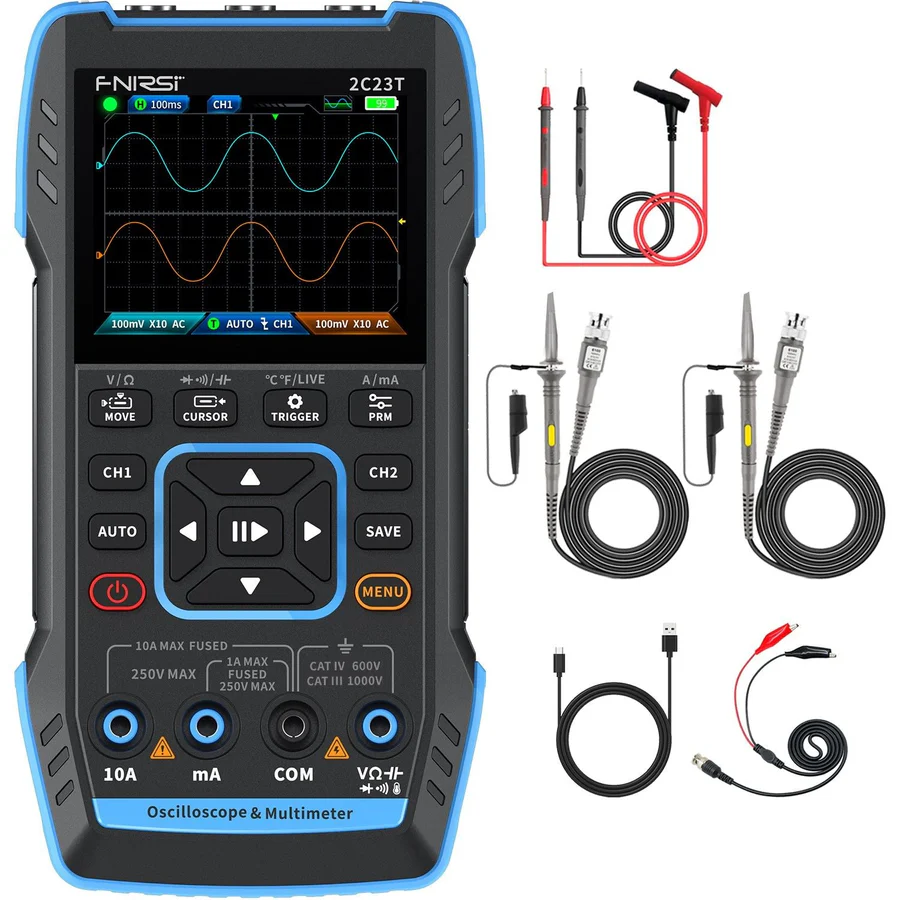

Package Contents

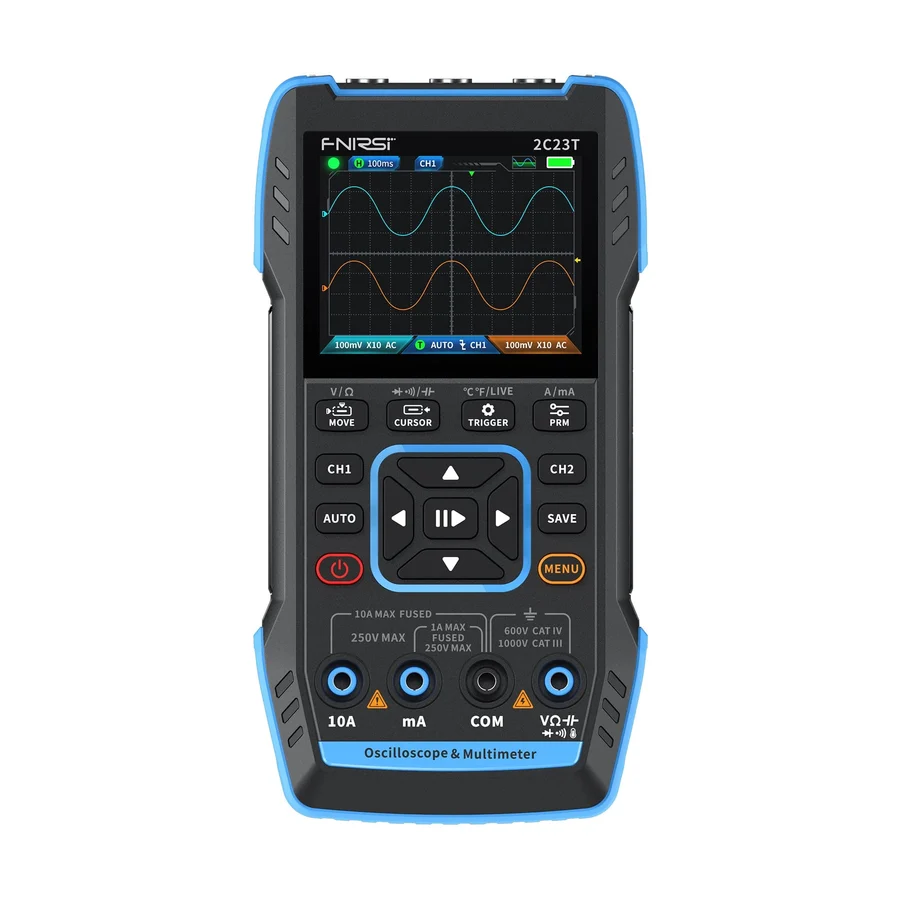

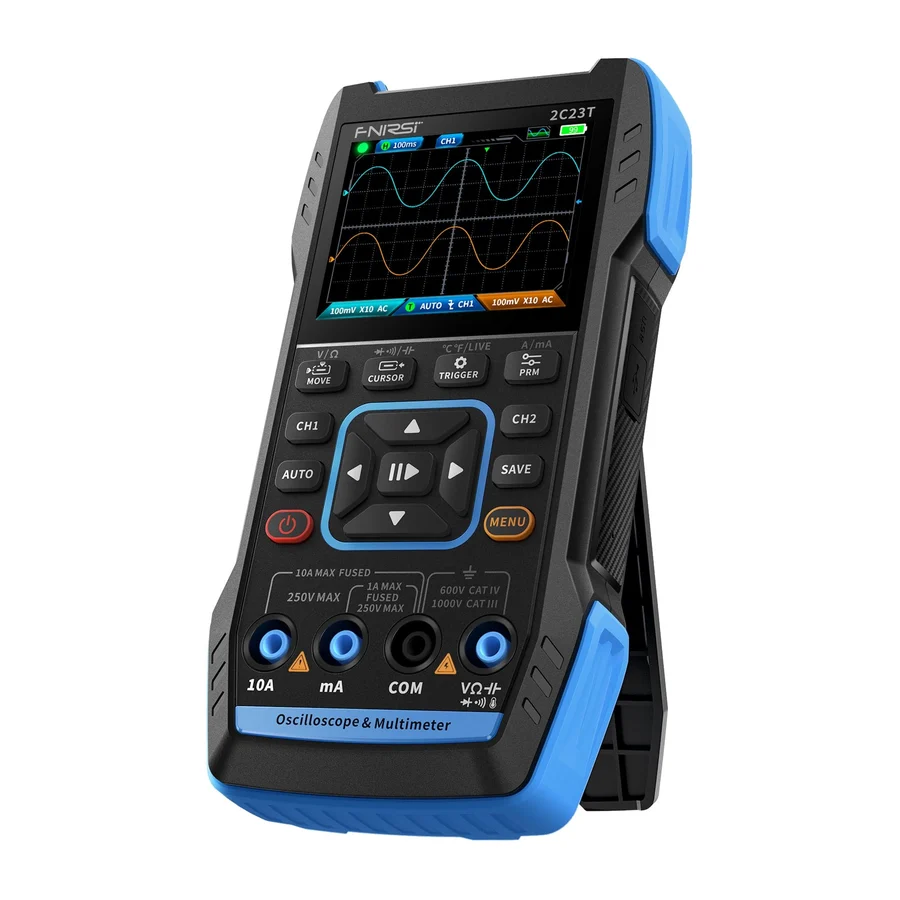

1× multimeter oscilloscope main unit

2× $10\times$ BNC Oscilloscope Probes ($1\times$ / $10\times$ selectable)

1× Pair of Multimeter Test Probes

1× Crocodile Clip Cable (Signal Generator Output)

1× USB Type-C Charging/Data Cable

1× User Manual
