Multifunctional Oscilloscope

Description

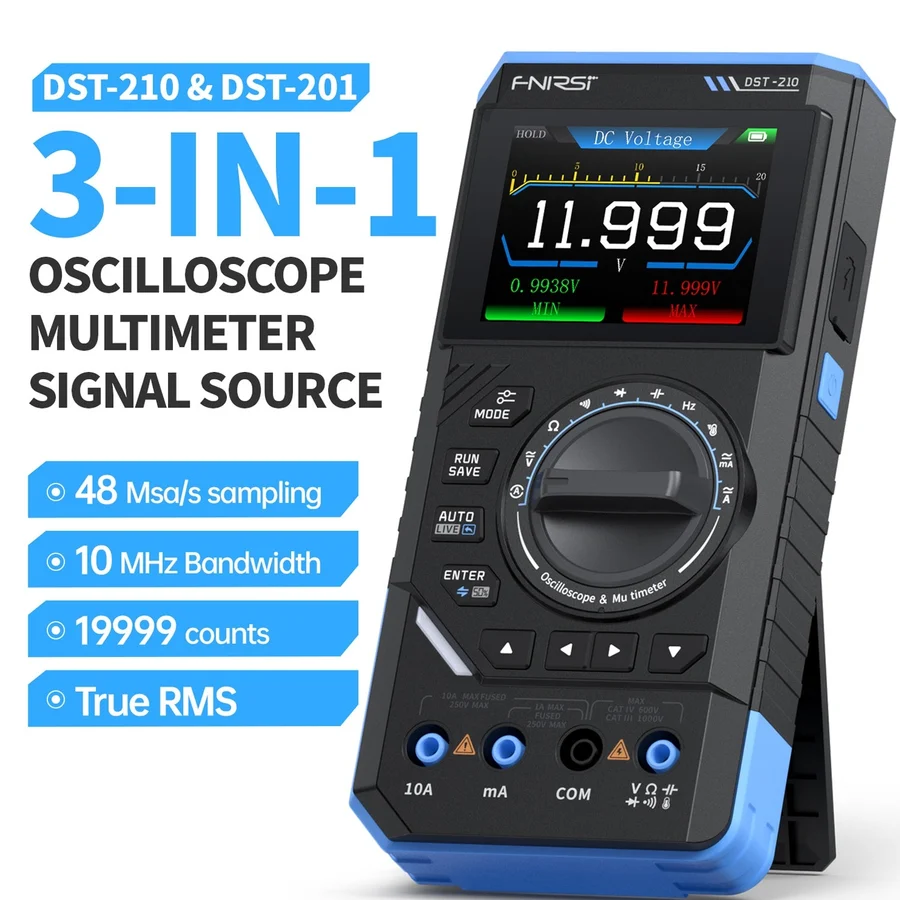

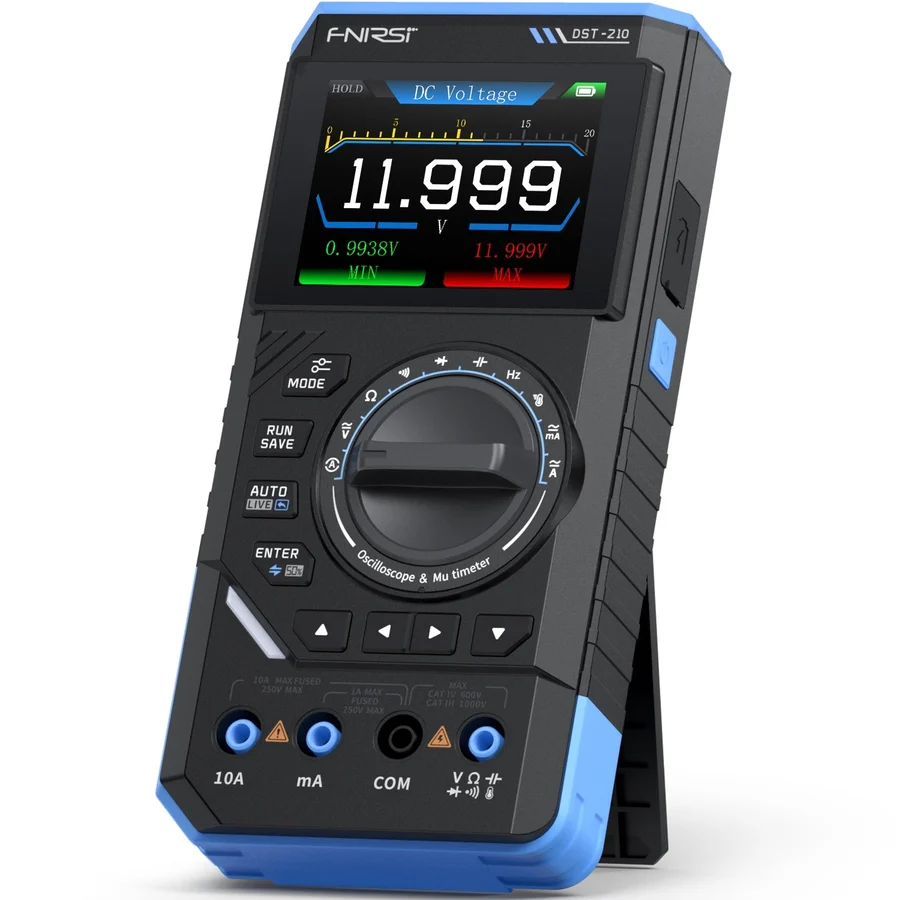

The multifunctional oscilloscope is a versatile 3-in-1 handheld instrument designed for electronic repairs, field engineering, automotive diagnostics, and hardware testing. Combining a digital oscilloscope, a high-count digital multimeter, and a DDS function signal generator into an ergonomic handheld package, it provides a complete portable diagnostic setup.

Core Specifications & Features

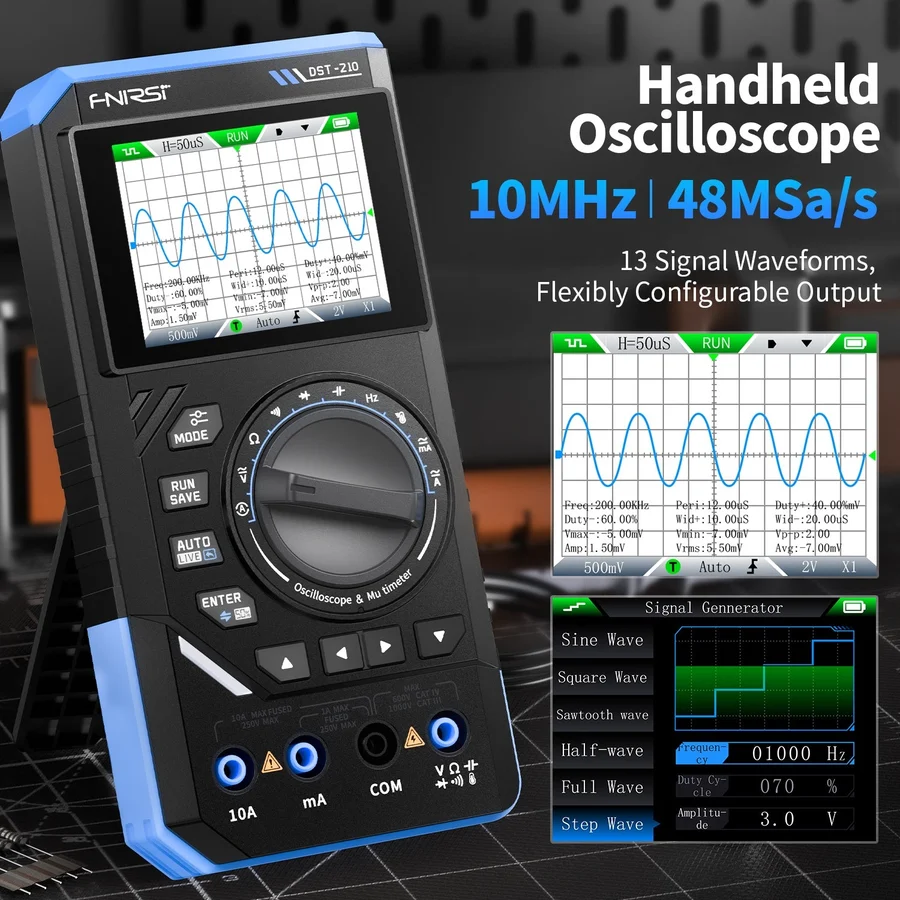

1. Digital Oscilloscope Mode

• Analog Bandwidth: 10 MHz (DST-210) / Single-channel input

• Real-Time Sampling Rate: 48 MSa/s

• Channels: 1 Channel

• Vertical Sensitivity: $10\text{ mV/div} – 10\text{ V/div}$ ($1\times$ probe sensitivity), up to $100\text{ V/div}$ ($10\times$ probe)

• Time Base Range: $50\text{ ns/div} – 20\text{ s/div}$

• Input Impedance: $1\text{ M}\Omega \parallel 16\text{ pF}$

• Coupling Modes: AC / DC

• Trigger Modes: Auto, Normal, Single

• Trigger Types: Rising Edge, Falling Edge

• Max Voltage Input: $\pm40\text{V}$ ($1\times$ probe), $\pm400\text{V}$ ($10\times$ probe)

• One-Key AUTO: Automatically scales and focuses timebase and amplitude parameters for rapid signal visualization.

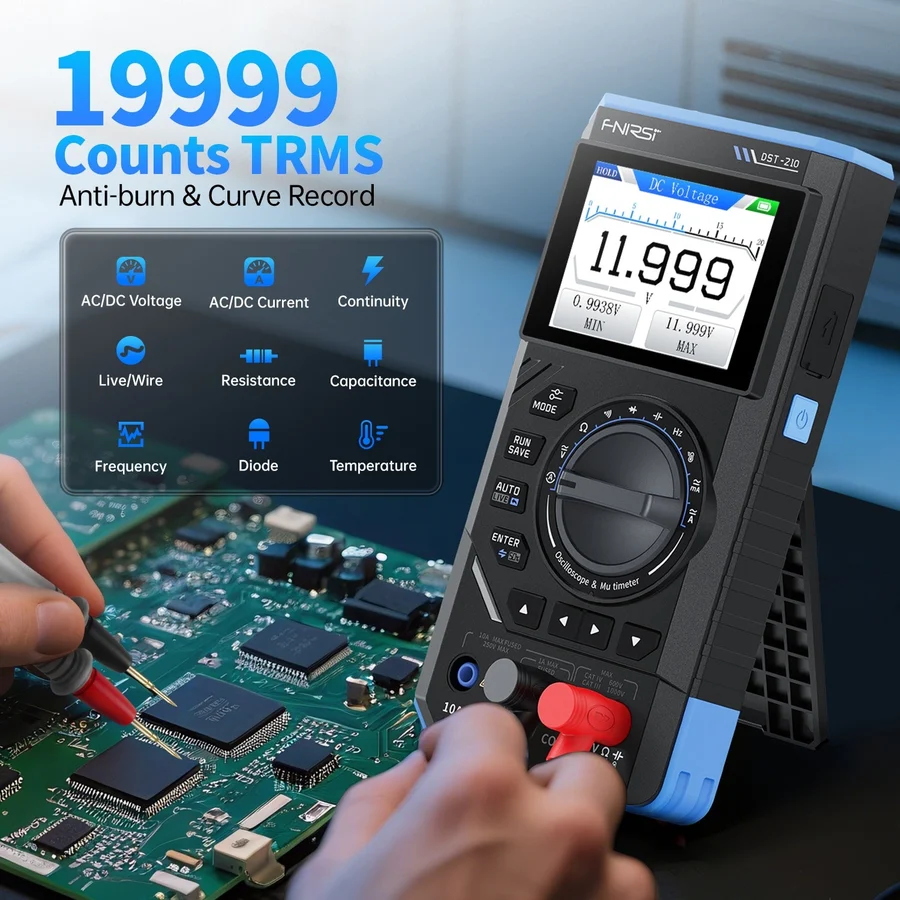

2. Digital Multimeter Mode

• Display Resolution: 9999 Counts True-RMS

• DC Voltage: 9.999\text{ mV} – 999.9\text{ V}

• AC Voltage: 9.999\text{ mV} – 750.0\text{ V}

• DC / AC Current: 9.999\text{ mA} – 9.999\text{ A}

• Resistance: 999.9\,\Omega – 99.99\text{ M}\Omega

• Capacitance: 9.999\text{ nF} – 99.99\text{ mF}

• Continuity & Diode: Audible continuity buzzer for low-resistance loops and diode forward-voltage testing.

• Temperature Measurement: Supports thermocouple input from -55^\circ\text{C}$ to +1300^\circ\text{C}

3. DDS Signal Generator Mode

• Waveforms Output: 6 Standard Waveforms (Sine, Square, Pulse, Triangle, Ramp, DC)

• Frequency Range: 1\text{ Hz} – 100\text{ kHz

• Amplitude Output: 0\text{ V} – 3.3\text{ V} adjustable

• Duty Cycle: 0\% – 100\% adjustable for square and pulse signals

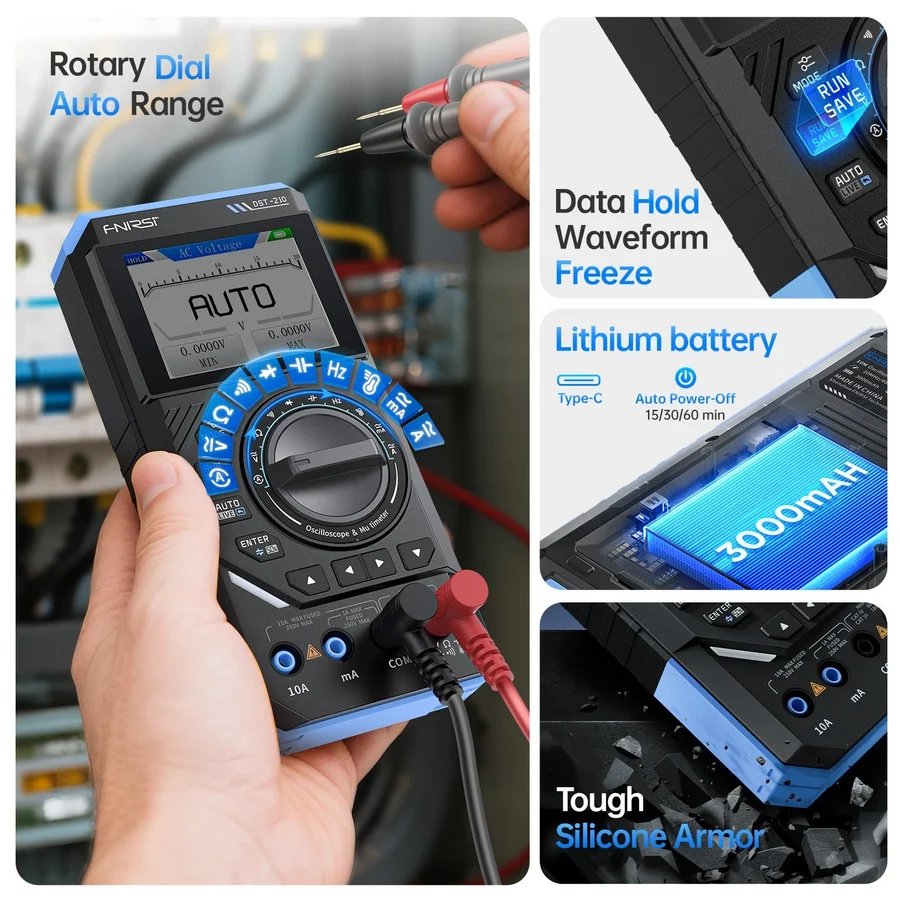

Hardware & Power

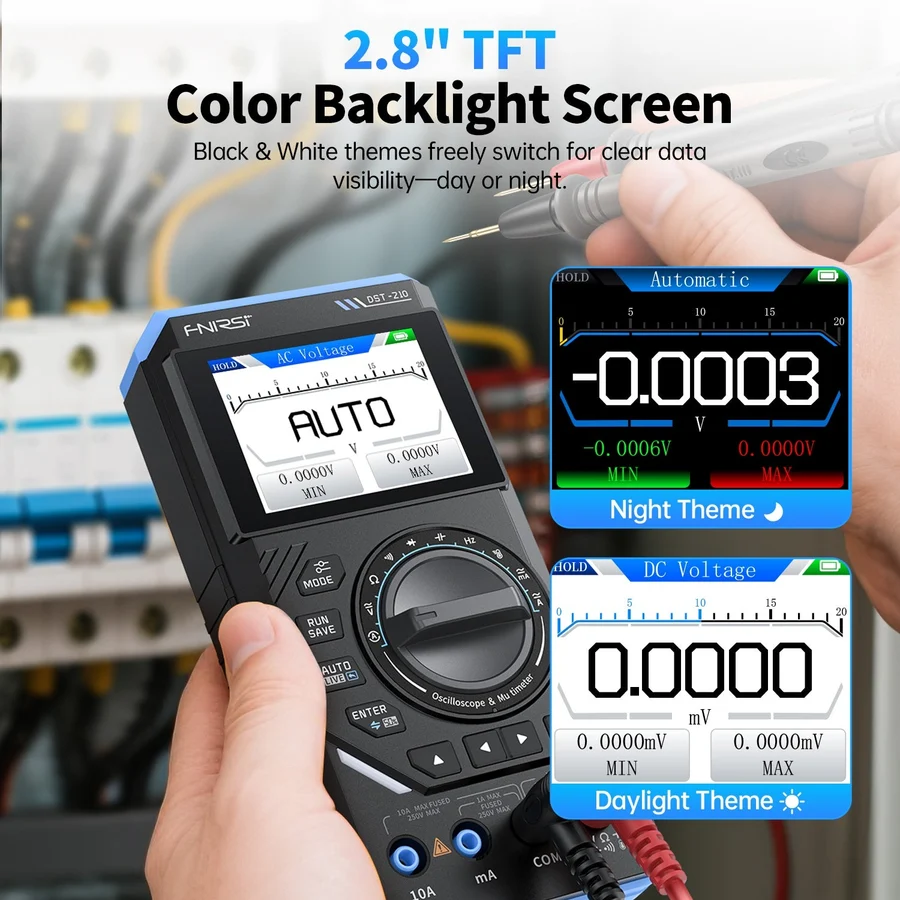

• Display: 2.8-inch color TFT screen with clear readability under various lighting conditions.

• Build & Protection: Durable outer housing designed for rugged field conditions and benchtop use.

• Power Supply: Powered by an internal rechargeable lithium battery providing 4 to 6 hours of continuous work time.

• Interface: USB Type-C port for battery charging 5\text{V}/1\text{A}$) and computer connection for updates or data exports.

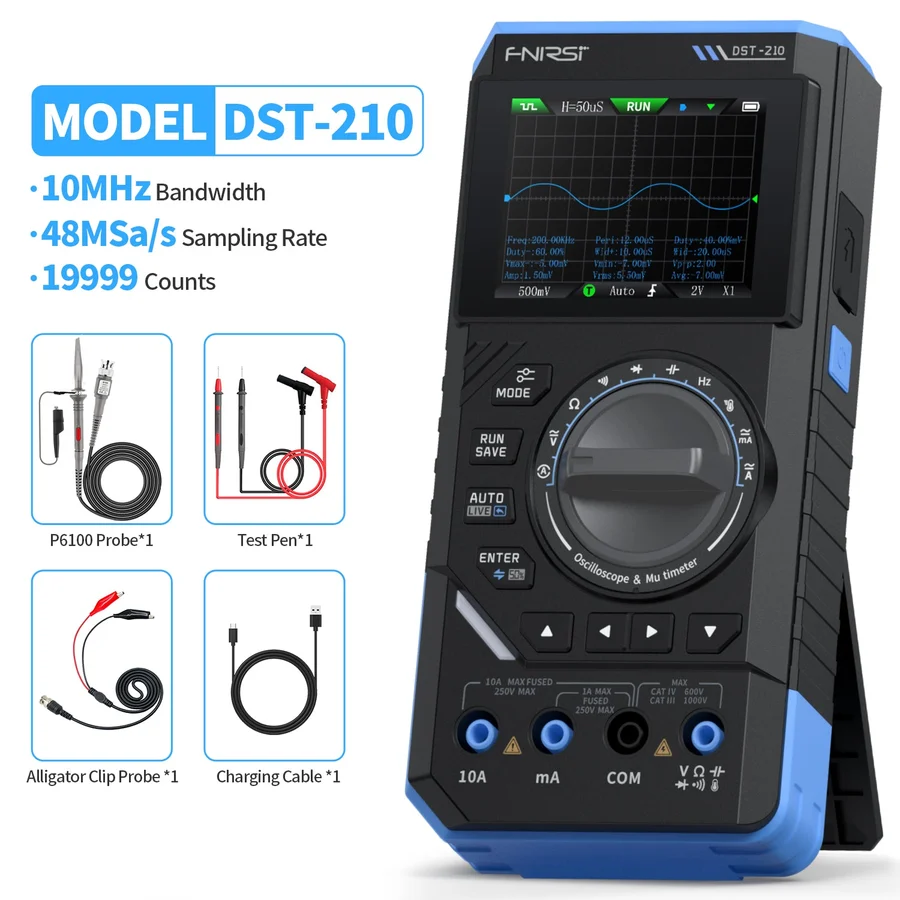

Package Contents

• 1× multifunctional oscilloscope main unit

• 1× High-voltage BNC Oscilloscope Probe

• 1× Pair of Multimeter Test Probes

• 1× Crocodile Clip Output Leads (for signal generator)

• 1× USB Type-C Charging/Data Cable

• 1× User Manual
