Description

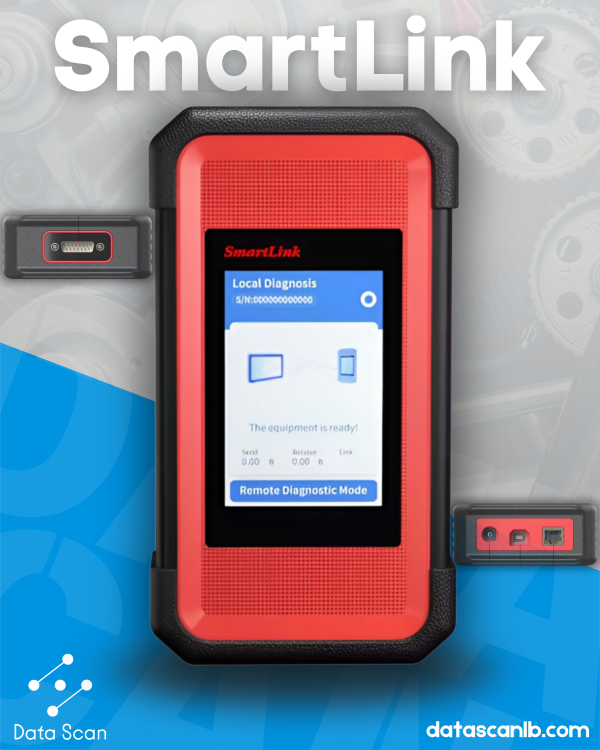

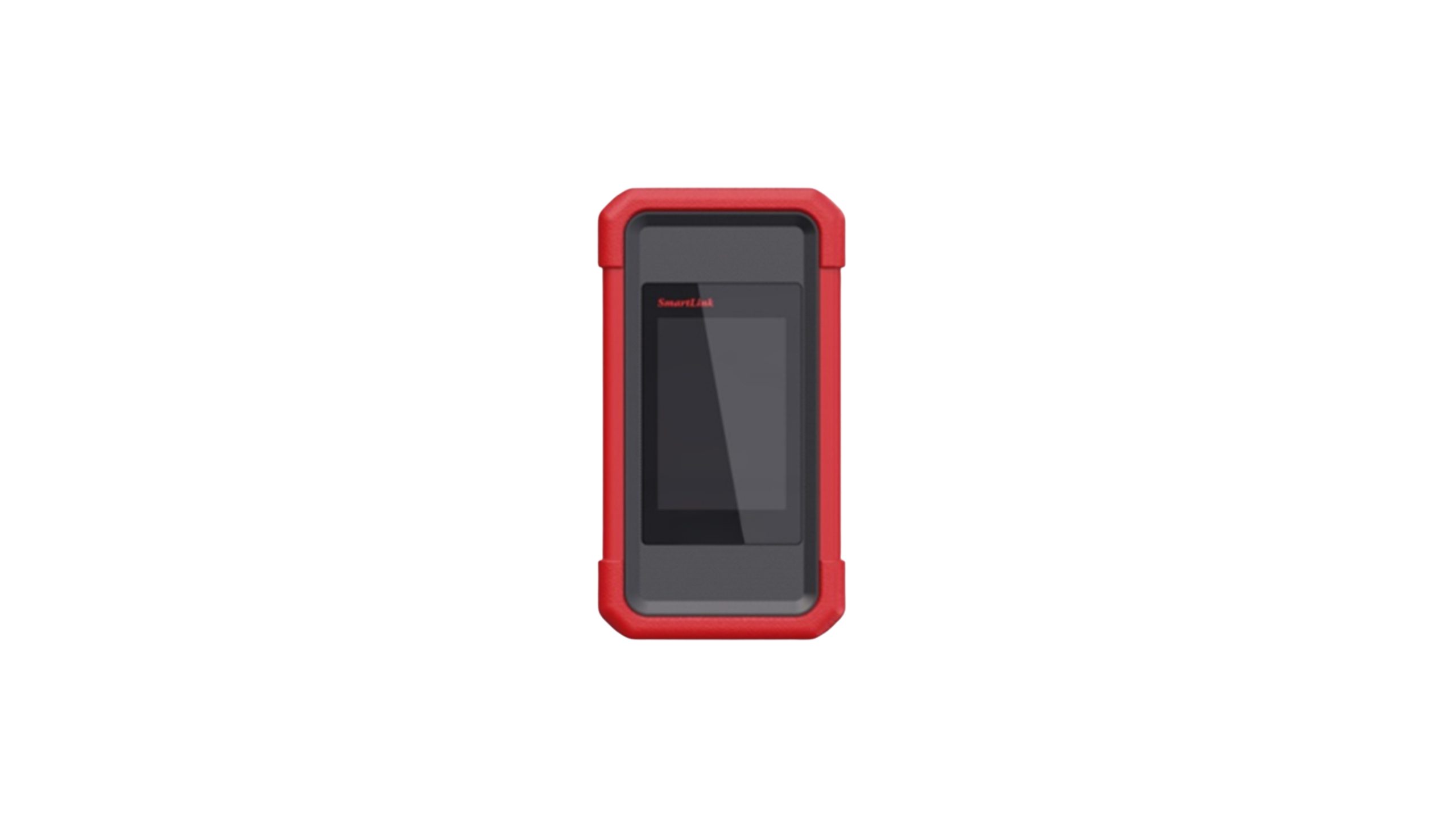

The SmartLink C is a high-end remote-capable diagnostic interface designed by Launch for vehicle repair professionals. It functions as a powerful J2534 Pass-Thru reflash device, enabling module updates and software reflashes when paired with manufacturer-specific platforms.
It also serves as the local end of a Super Remote Diagnosis (SRD) system when used alongside the SmartLink B.
Core Features
-
Wide Compatibility: Works with OE manufacturer tools, and third-party systems.
-
Advanced Protocol Support: Includes support for J2534, DoIP, CAN FD, CAN 2.0, RP1210, and D-PDU.
-
Dual Functionality:
-
Local diagnostics via Wi-Fi, Bluetooth, USB, or Ethernet.
-
-
Secure Remote Access: Submit and accept remote diagnostic jobs through a web platform, enabling technicians to assist vehicles from afar.
-

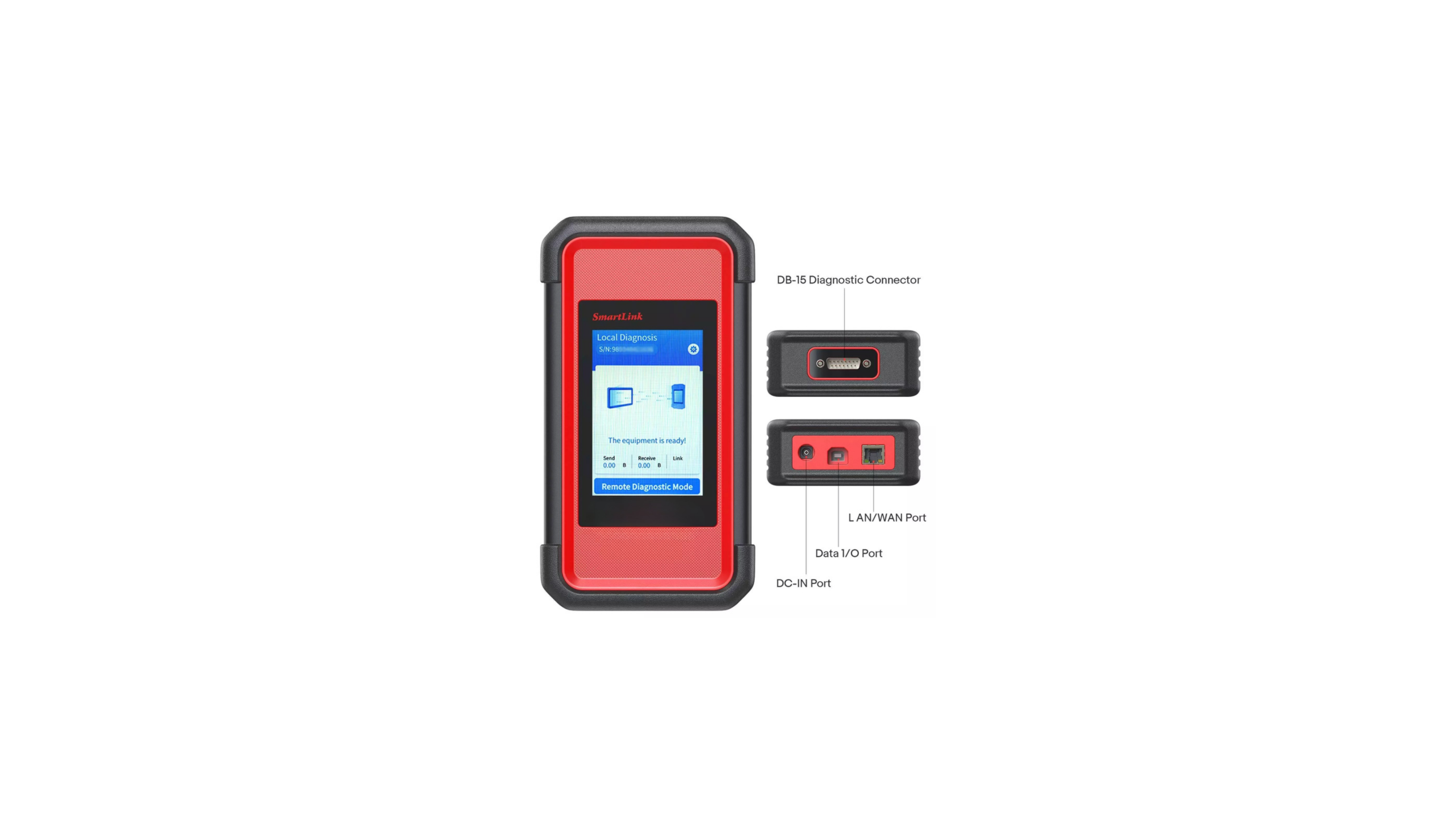

V2.0 Upgrades: Improved Wi-Fi range, enhanced heat dissipation, and a more secure DB15 connector for reliability.
Technical Specifications
Based on versions V2.0 and HD:
| Spec | Details |
|---|---|

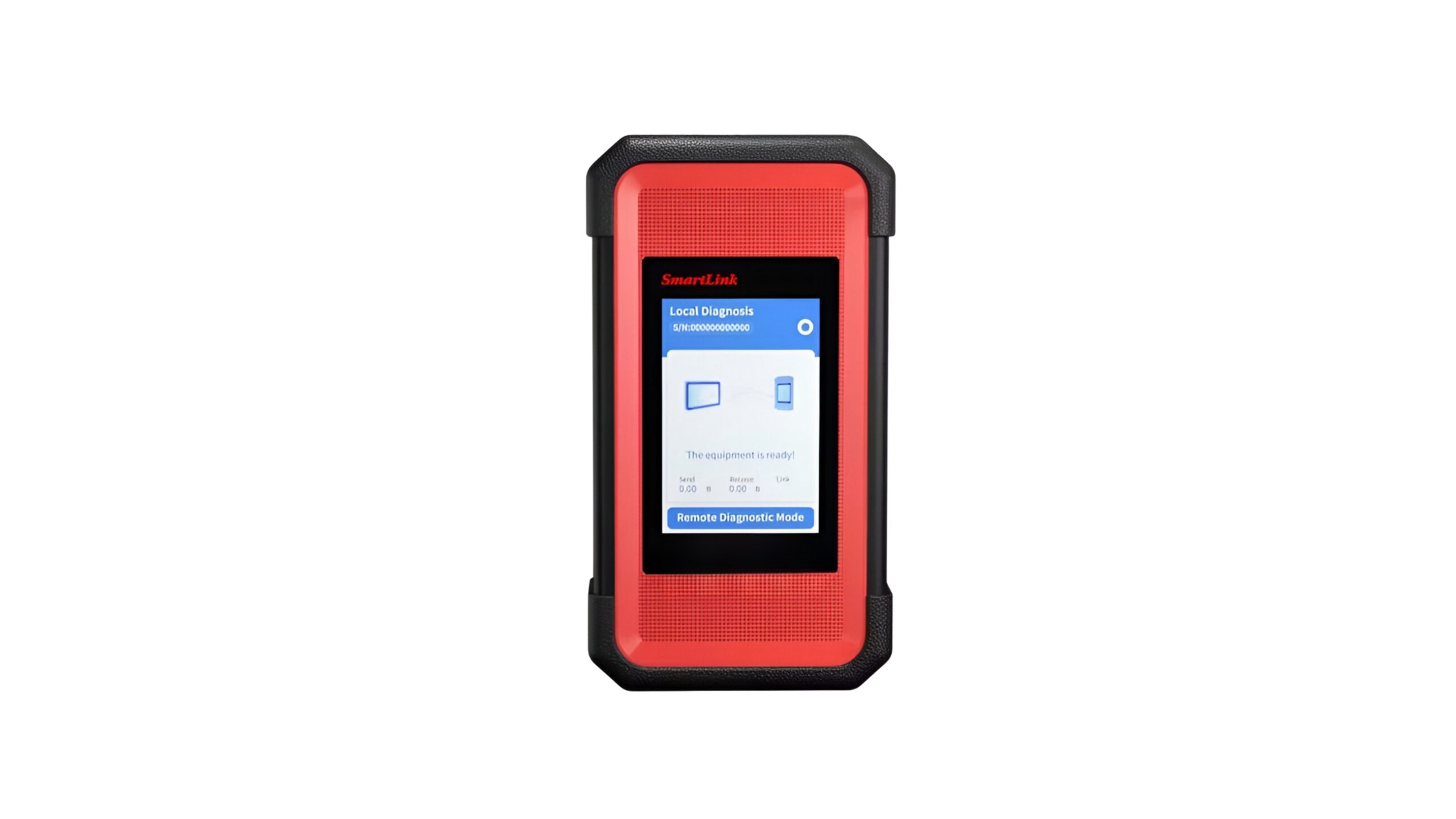

| Display | ~3.95″ touchscreen, 320 × 480 pixels |
| Memory & Storage | 256 MB RAM, 8 GB internal storage |
| Power & Operating Voltage | DC 9V–36V, power consumption <6W |
| Connectivity | Wi-Fi, Bluetooth, USB, Ethernet |
| Dimensions | Approx. 200 × 110 × 47 mm |
| Operating Temp. | ~0 °C to 50 °C (storage down to −20 °C) |
Use Cases & Applications
-
Module Reflashing & Programming: Capable of updating ECUs and other vehicle modules via OEM platforms.
-
Remote Diagnostics: Technicians can evaluate and fix vehicle issues remotely using the SmartLink architecture.
-
Heavy-Duty Application (HD version): Extends support to commercial vehicles—trucks, buses, machinery—via the SmartLink C HD module.
Summary
The SmartLink C is a powerful and flexible diagnostic dongle enabling both remote and local vehicle diagnostics, reflashing, and module programming. Its advanced protocols, robust hardware, and SRD functionality make it a valuable tool for modern automotive service professionals.
