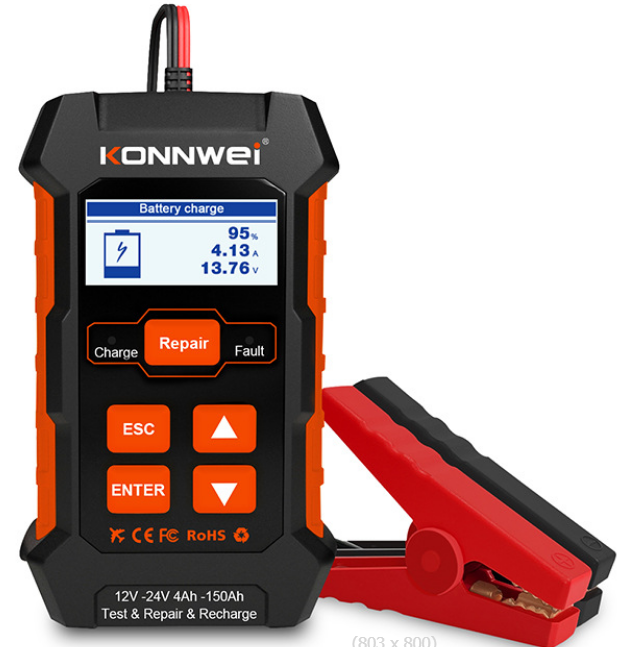

KONWEI KW520

Description

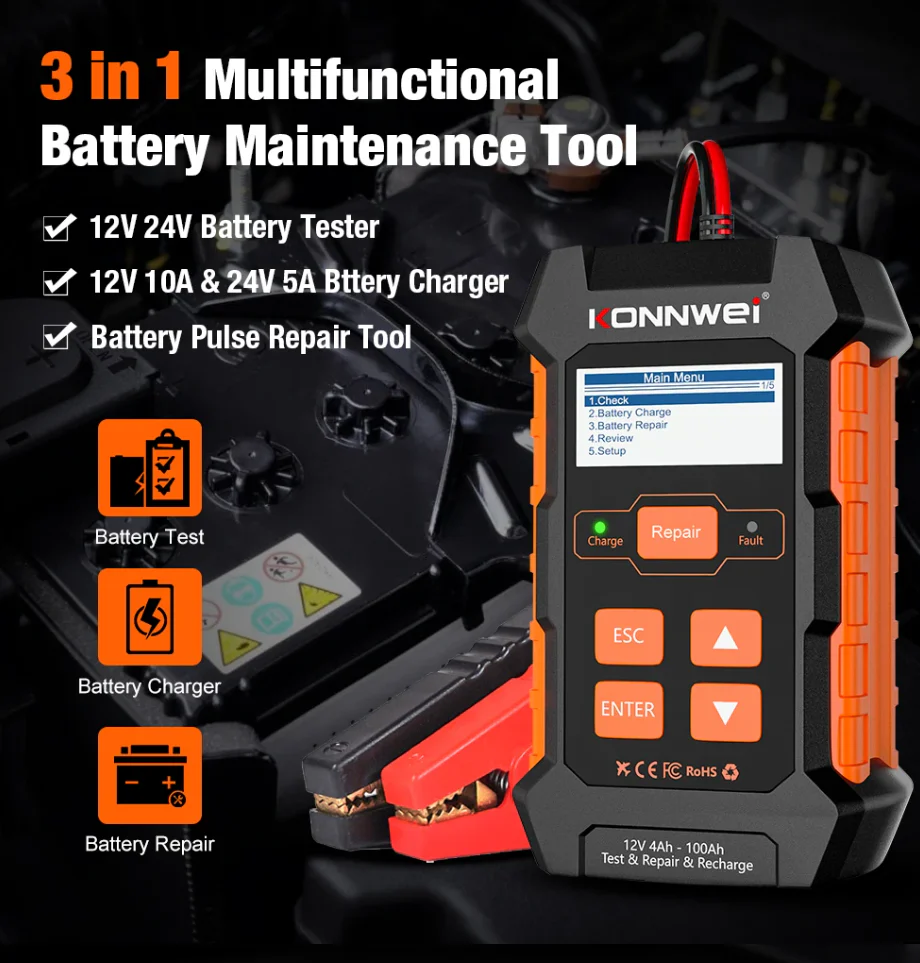

The KONNWEI KW520 is a professional 3-in-1 battery maintenance tool that combines a battery tester, automatic charger, and pulse repair/maintainer in one device. It’s designed for use with 12 V and 24 V automotive batteries including common lead-acid types (flooded, AGM flat plate, AGM spiral, GEL, EFB) as well as lithium batteries, making it suitable for cars, motorcycles, trucks, lawnmowers, boats, and other vehicles.

🔋 Main Functions

Battery Testing:
• Measures voltage, internal resistance, State of Charge (SOC), State of Health (SOH) and Cold Cranking Amps (CCA) to assess battery condition.
• Performs cranking system and charging system tests to check the starter and alternator performance.
• Supports many battery standards such as CA, CCA, BCI, MCA, JIS, SAE, EN, DIN, and IEC.

Automatic Battery Charger:

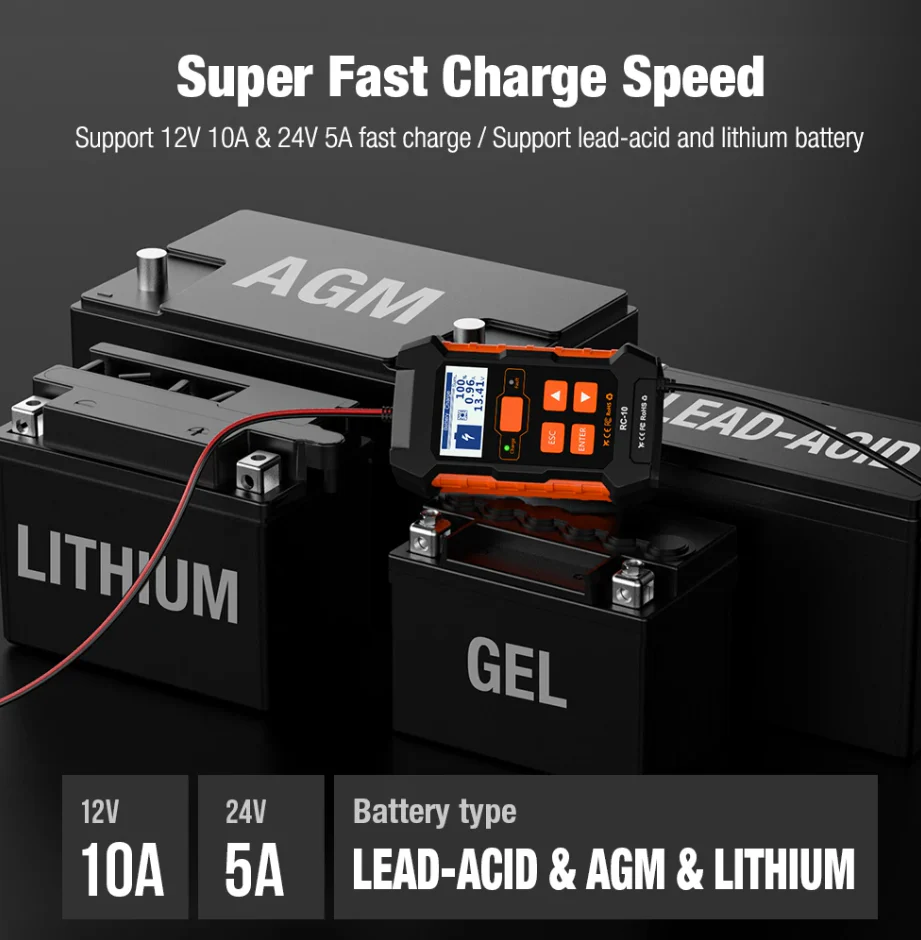

• Offers 12 V 10 A and 24 V 5 A fast charging.
• Can start charging from as low as 2 V.
• Features automatic temperature compensation to adapt charging based on ambient conditions (winter/summer).
• Includes intelligent safety protections like short-circuit, overcurrent, overheat, low-pressure, over-pressure, mislink, and reverse-polarity protection.

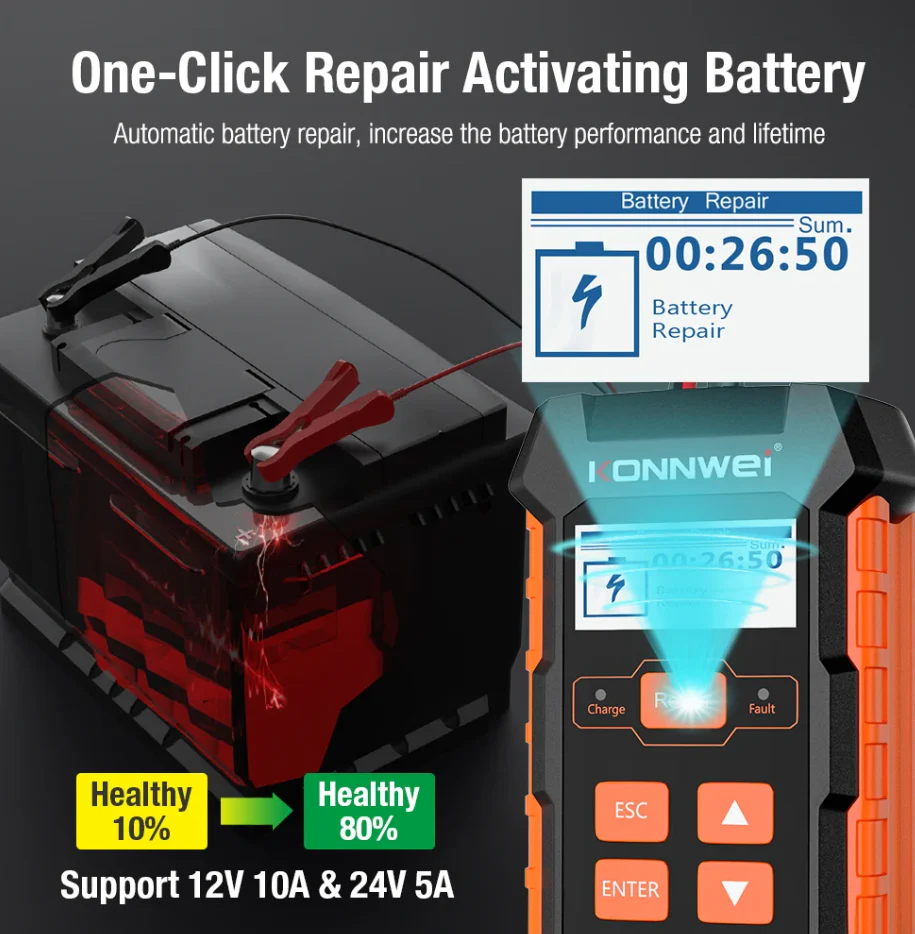

Pulse Repair / Maintainer:
• Uses pulse repair technology to detect and help correct battery sulfation and acid stratification, potentially restoring performance and extending battery life.
• One-click repair monitoring through the device’s menu.

📊 Display & Usability

The KW520 features a large color LCD screen and intuitive button navigation, making it easy to view test results, charging status, and repair progress. It supports multiple languages for global use.

🧰 Build & Safety

Built with 100 % fire-resistant materials and comprehensive safety protections, the KW520 is designed for safe long-term operation, even during extended charging periods.

🧾 Typical Uses

• Diagnose battery health and recommend action (good, recharge, or replace)
• Recharge depleted batteries efficiently
• Restore older or sulfated batteries with pulse repair
• Check vehicle starting and charging systems

In summary, the KONNWEI KW520 is a multifunctional and user-friendly battery care device ideal for both automotive enthusiasts and professional workshops that need testing, charging, and repairing in one unit.
