GODIAG GD101 J2534 Nano

Description

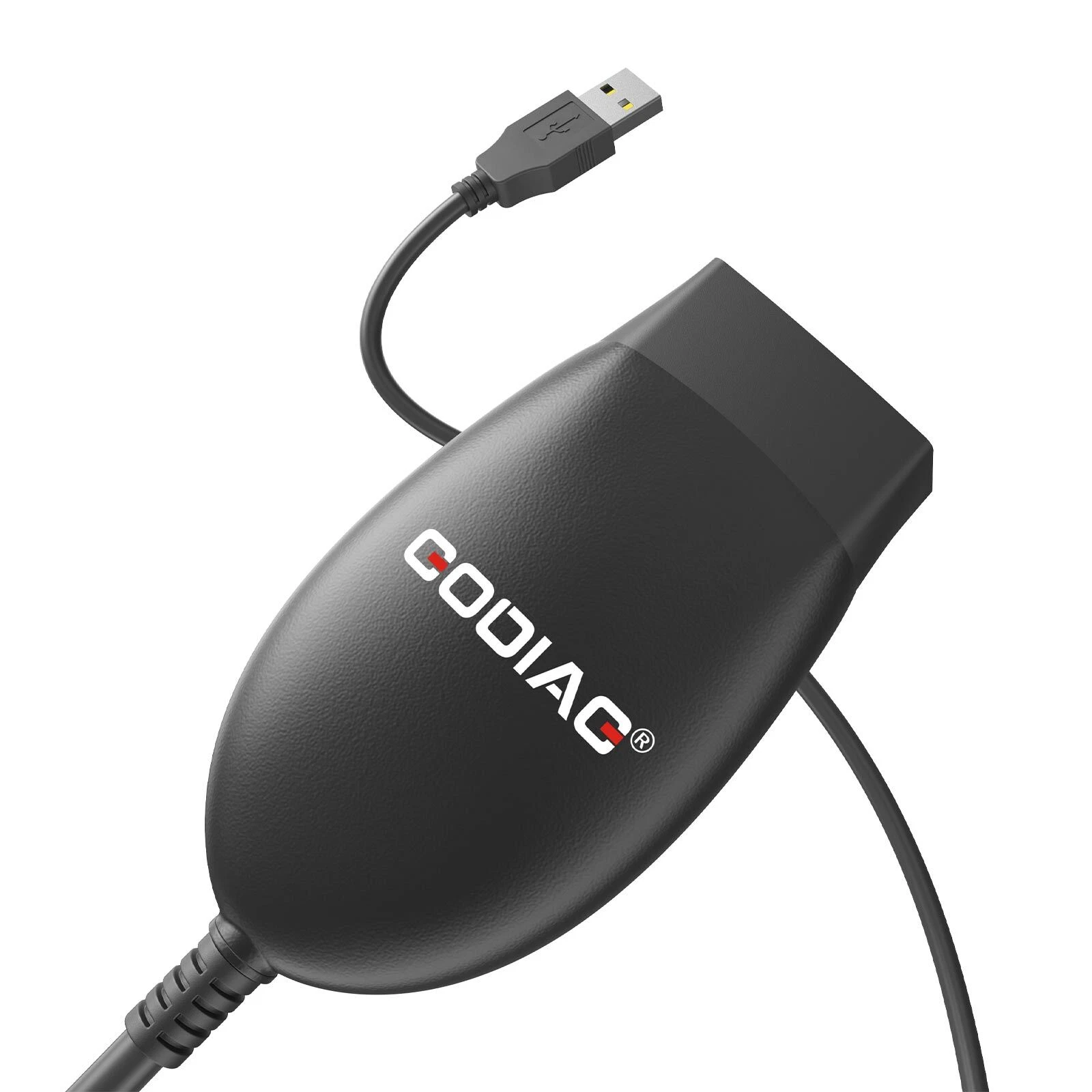

The GODIAG GD101 J2534 Nano is a vehicle diagnostic and programming interface that connects a car’s OBD-II port to a Windows PC via USB. It combines J2534 Pass-Thru capabilities (for ECU programming/reflashing) with ELM327-style OBD2 diagnostics in one compact device.

It’s often considered a budget alternative to the Tactrix Openport 2.0 style interfaces, supporting many aftermarket and OEM software tools.

---

🧠 Capabilities

Dual-Mode Operation

• J2534 Pass-Thru mode for ECU programming and reflashing with OEM tools.

• ELM327 mode for standard OBD2 diagnosing (reading/clearing codes, live data).
  Both modes auto-switch depending on software used.

Software Compatibility
Supports most diagnostic and reprogramming software that uses J2534 APIs or ELM327 commands, including:

• Honda HDS

• Toyota Techstream

• JLR SDD

• Forscan

• VAG ODIS

• ScanMaster

• Renault Can Clip
  …and more.

Operating System

• Works on Windows 8/10/11 (32-bit & 64-bit).

Free Software Included

• Some listings mention free diagnostic software compatibility for J1979-compliant vehicles.

---

📈 Protocols & Hardware Support

The cable supports a wide range of automotive communication protocols, enabling compatibility across many vehicle makes:

Communications Protocols

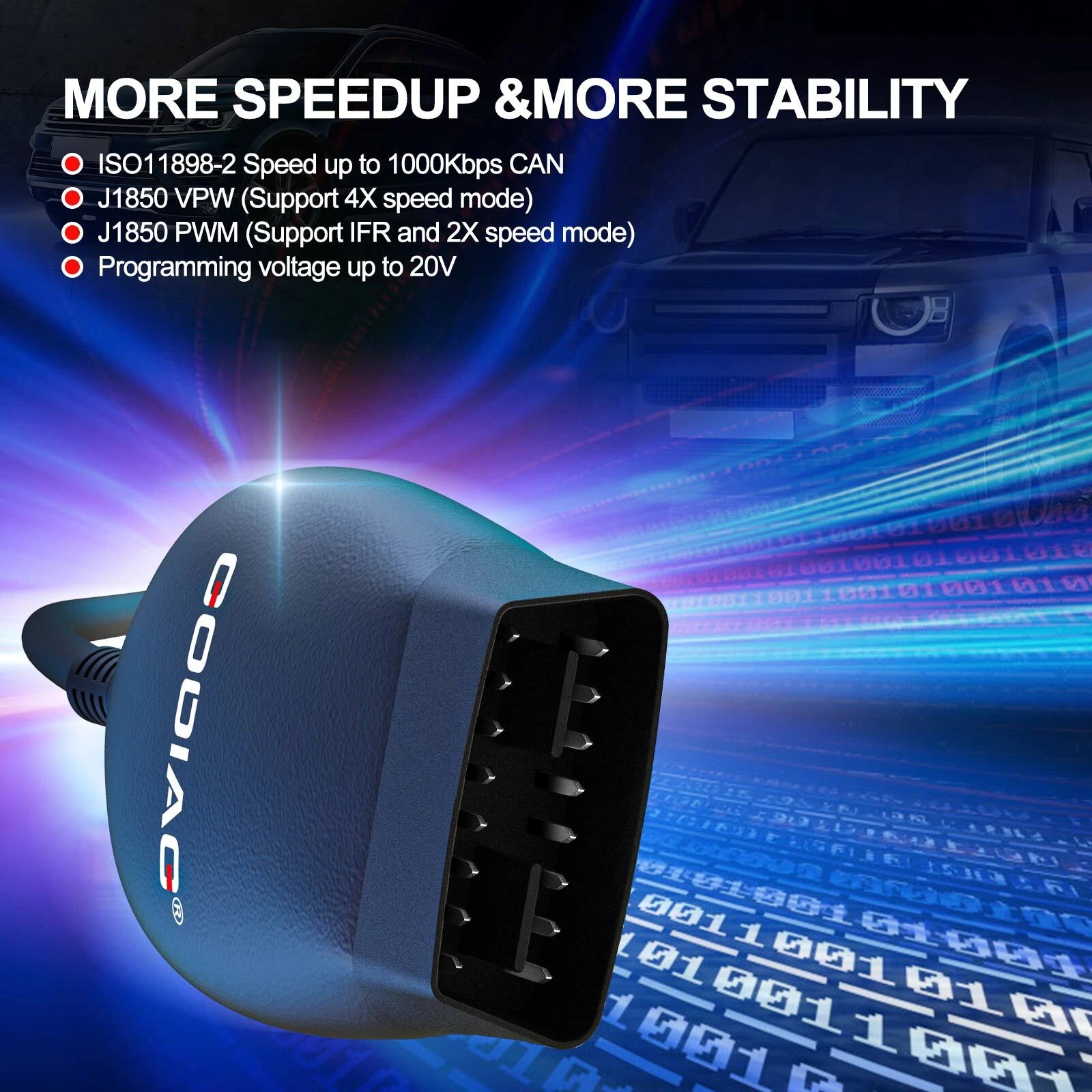

• ISO15765 (CAN) – Standard & Extended frames

• ISO9141 & ISO14230 (K-line)

• J1850 PWM & J1850 VPW

• ELM327 command set v1.3a

• Supports programming voltage output and short-to-ground testing.

Hardware & Electrical

• High-speed CAN support (up to 1000 kbps)

• Programming voltage up to ~20 V for ECU reflashing

• USB 2.0 connection to PC

• Vehicle power from OBD-II port (8-18 V DC)

• Engine bay operating range -20 °C to 45 °C (-4 °F to 113 °F)

---

📍 Physical & Build

• Compact & portable device

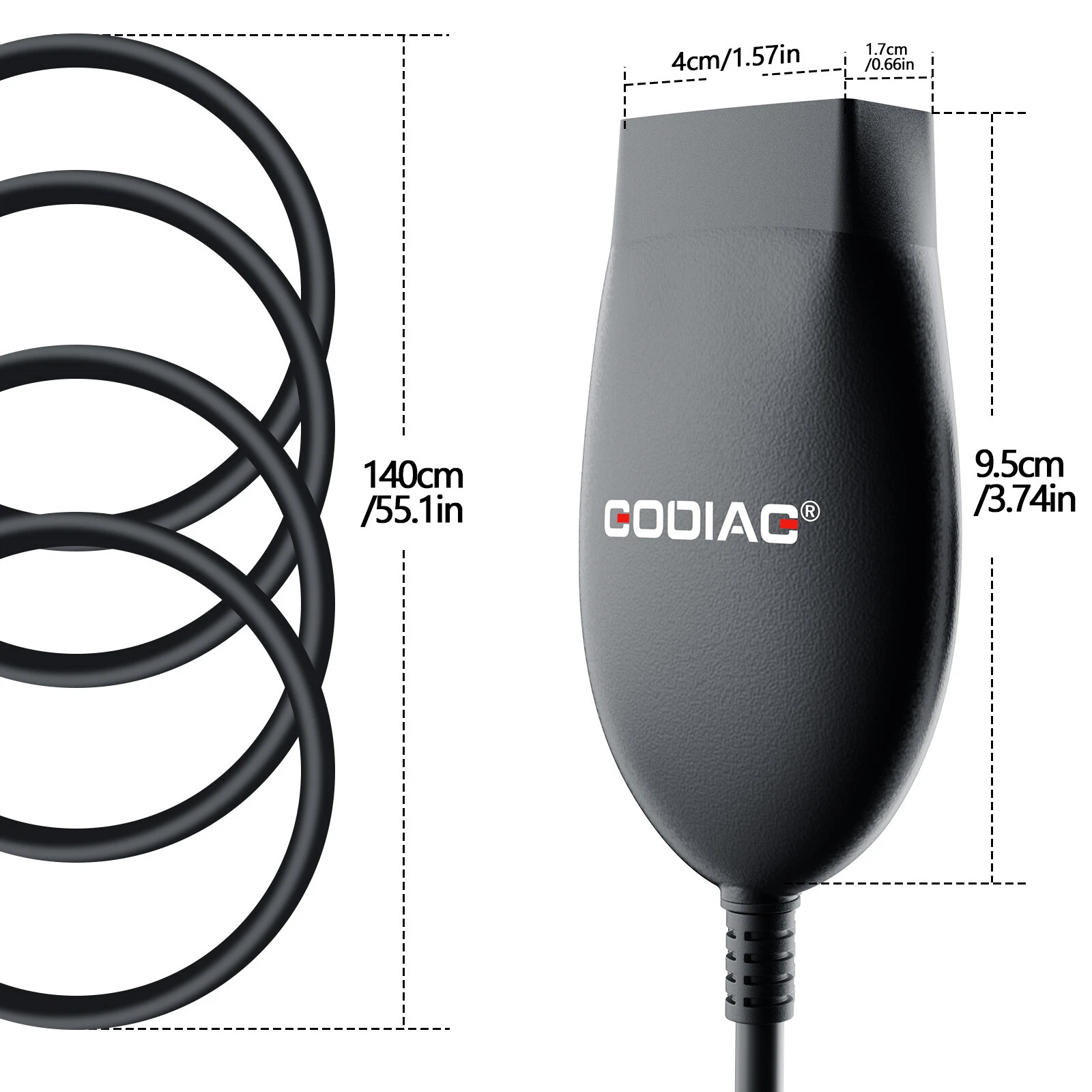

• Typical dimensions around 95 × 55 × 23 mm

• Connects to vehicle via OBD-II 16-pin plug and to PC via USB.

---

🚗 Typical Uses

Diagnostics

• Read and clear DTCs (Diagnostic Trouble Codes)

• View live sensor data

• Perform OBD2 checks

ECU Programming / Reflashing

• Use manufacturer software to update ECU firmware

• Reflash modules using J2534 supported tools

Software Examples

• Forscan (Ford/Mazda)

• Techstream (Toyota)

• HDS (Honda)

• ODIS (VW/Audi)
  …depending on tool support and software licensing.

---

📝 Notes & Limitations

• Does not support MS-CAN (some Ford/Mazda protocols) on some firmware versions.

• Diagnostic/reprogramming features may vary by vehicle make, model, year, and software compatibility.

• In practice, setup may require specific drivers and sometimes workarounds for certain OEM software (reports from some users online).

---

📌 In Summary

GODIAG GD101 J2534 Nano is a budget multifaceted OBD-to-PC diagnostic and programming cable that:
✔ Supports both J2534 and ELM327 diagnosis/programming in one unit.
✔ Works with a wide array of diagnostic and reflashing software.
✔ Provides portable and versatile use for DIYers, workshops, and advanced hobbyists.
