Description
The Chrysler 12+8 diagnostic cable is a specialized adapter used primarily with Chrysler, Dodge, Jeep, Ram, Fiat, and Alfa Romeo vehicles under the Fiat Chrysler Automobiles (FCA) group. This cable enables advanced diagnostics, module programming, and maintenance tasks by allowing access to specific vehicle networks that are otherwise restricted.
1. Purpose and Functionality:
The primary purpose of the 12+8 cable is to bypass the Security Gateway Module (SGW) in newer FCA vehicles. Introduced around 2018, the SGW restricts access to the vehicle’s internal networks, preventing unauthorized diagnostic and programming activities.
-
The 12+8 cable enables technicians to:
-
Access critical modules that are blocked by the SGW.
-
Perform module programming, flashing, and advanced diagnostics.
-
Read and clear Diagnostic Trouble Codes (DTCs) from protected modules.
-
Update Electronic Control Units (ECUs) using J2534 pass-thru devices.
-
2. Why “12+8”?
The name “12+8” refers to the cable’s configuration:
-
The cable combines a 12-pin connector and an 8-pin connector into a single unit.
-
These connectors are necessary because FCA vehicles have multiple communication protocols across different networks, such as:
-
CAN IHS (12-pin) – Interior High-Speed CAN network.
-
CAN C (8-pin) – Chassis High-Speed CAN network.
-
-
The combined cable design ensures that both CAN networks are properly accessed, allowing comprehensive diagnostics.
3. Compatibility:
The Chrysler 12+8 cable is compatible with a wide range of FCA vehicles, typically from 2018 onwards.
-
Chrysler: Pacifica, 300, Voyager
-
Dodge: Charger, Challenger, Durango
-
Jeep: Grand Cherokee, Wrangler, Gladiator
-
Ram: 1500, 2500, 3500
-
Fiat and Alfa Romeo: Some newer models
Diagnostic Software Compatibility:
-
WiTECH 2.0: FCA’s official diagnostic tool.
-
Aftermarket Scanners: That support the 12+8 configuration.

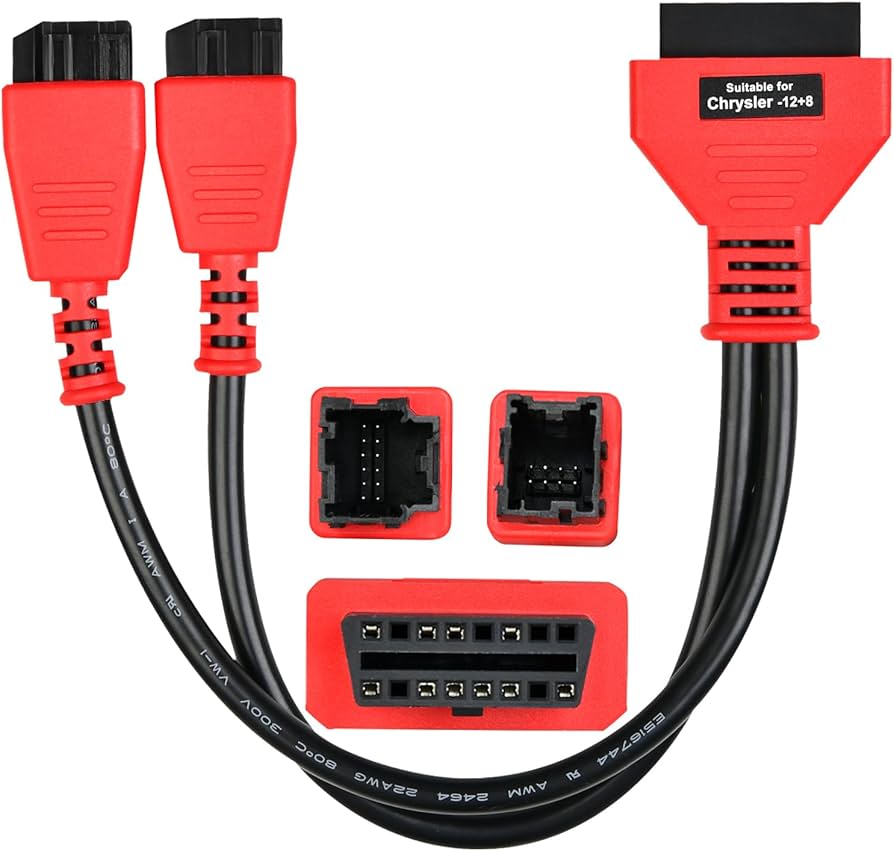

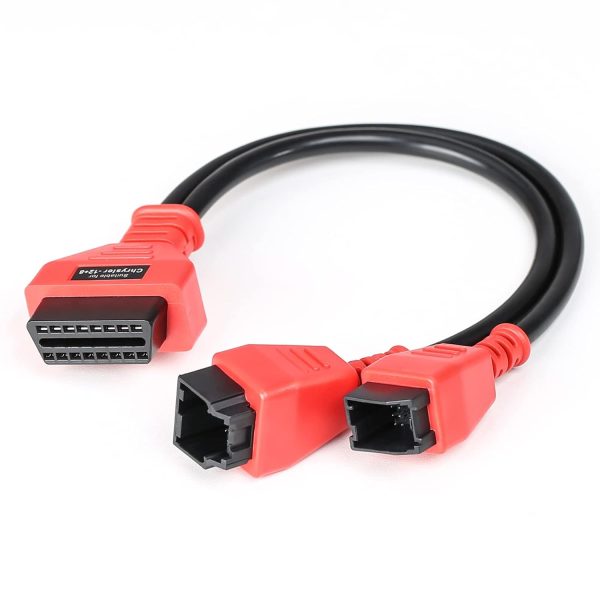

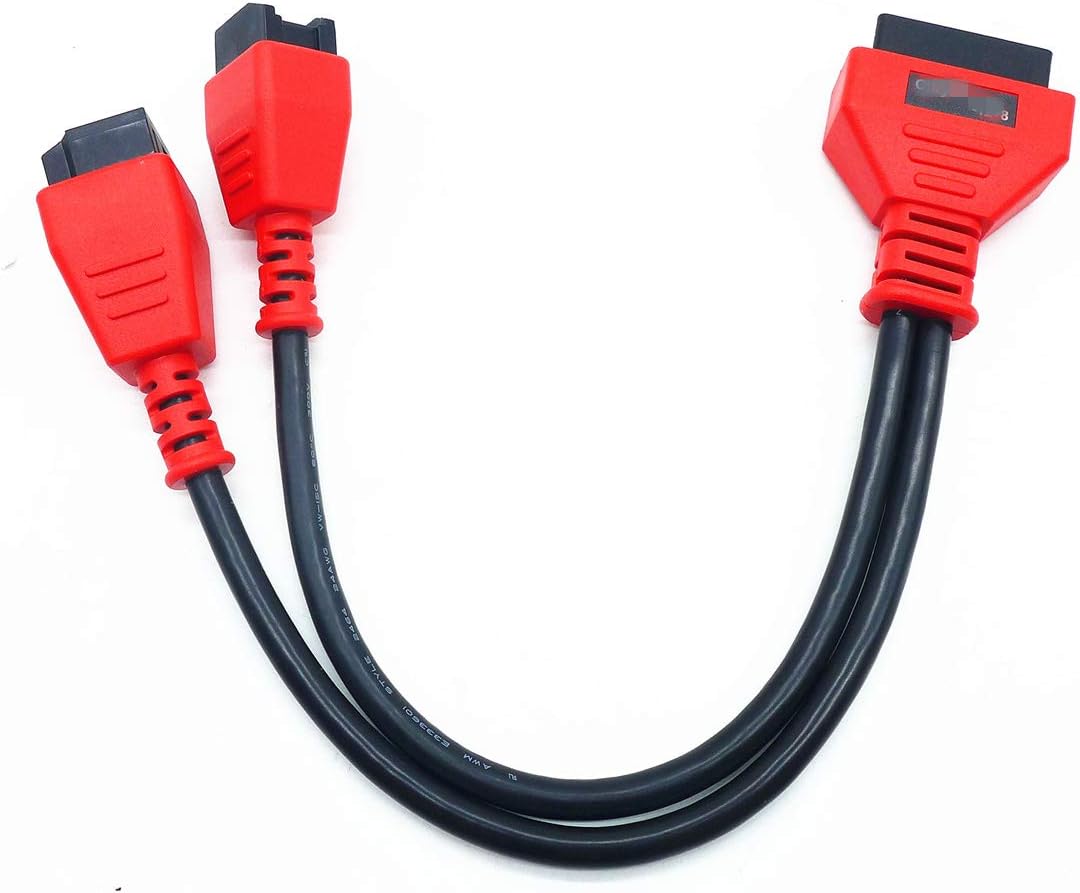

4. Design and Build:
-
Connectors:
-
One end: OBD-II male connector to the vehicle’s diagnostic port.
-
Other end: Two connectors (12-pin and 8-pin) to connect to the diagnostic interface.
-
-
Construction:
-
Durable, high-quality plastic and metal connectors for long-term use.
-
Flexible, insulated wiring to withstand vehicle environments.
-
-
Length: Typically around 0.5 to 1 meter (1.5 to 3 feet) for ease of use in cramped spaces.
5. How to Use:
-
Locate the OBD-II port on your Chrysler, Dodge, Jeep, or Ram vehicle (usually under the dashboard).
-
Connect the 12+8 cable to the OBD-II port.
-
Plug the other end into your diagnostic tool (WiTECH 2.0, J2534 device, or compatible scanner).
-
Run your diagnostic software to access restricted modules.
-
Perform the desired operations, such as DTC reading, module programming, or ECU flashing.
6. Benefits:
-
SGW Bypass: Essential for accessing protected modules.
-
Comprehensive Diagnostics: Provides full access to both CAN IHS and CAN C networks.
-
Time-Saving: Eliminates the need to manually bypass the SGW.
-
Cost-Effective: Allows technicians to use existing J2534 tools for FCA diagnostics.
7. Typical Uses:
-
Professional Automotive Repair: Advanced diagnostics and ECU programming.
-
Vehicle Maintenance: Reading and clearing fault codes.
-
Software Updates: Flashing ECUs with the latest firmware.
-
Vehicle Modifications: Adjusting parameters like tire size or adding aftermarket features.
8. Limitations and Cautions:
-
Authorized Access: Only use the cable for legitimate maintenance and diagnostics. Unauthorized use may violate FCA’s terms.
-
Tool Requirements: Make sure your diagnostic tool supports the 12+8 cable.
-
Software Licensing: WiTECH 2.0 requires a valid subscription.
-
Vehicle Compatibility: Not suitable for pre-2018 models without SGW.
9. Troubleshooting Tips:
-
No Communication: Check connections and verify that the diagnostic tool supports the cable.
-
Data Inaccessibility: Ensure you have bypassed the SGW correctly.
-
Error Messages: Restart the tool and vehicle, and check for updates to the diagnostic software.
