BMW Enet Cable

Description

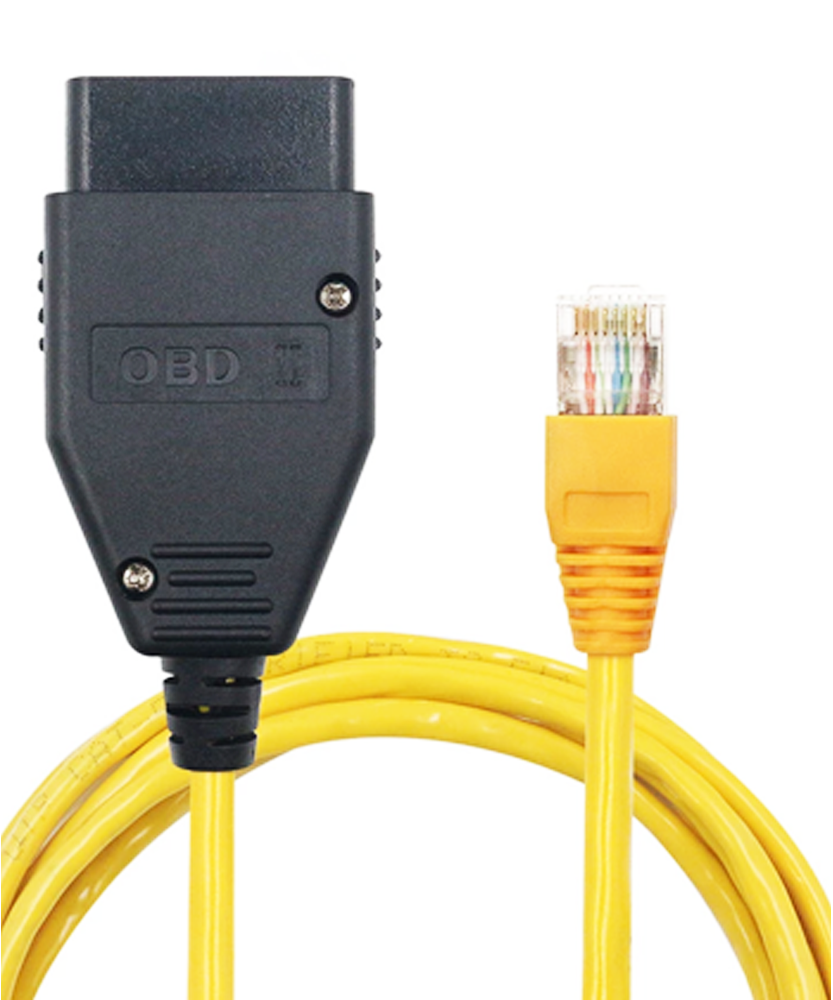

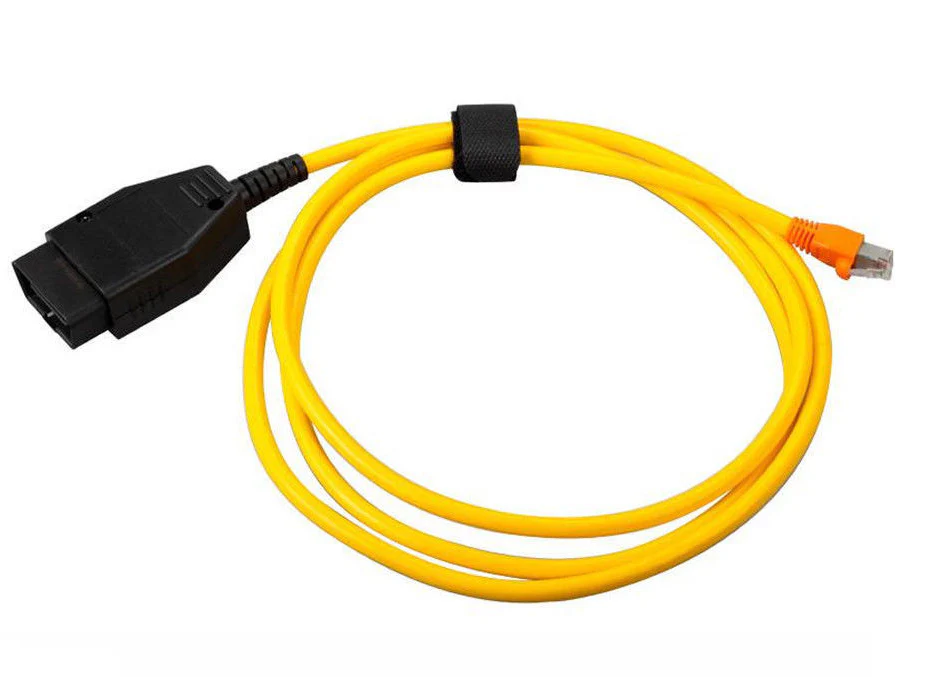

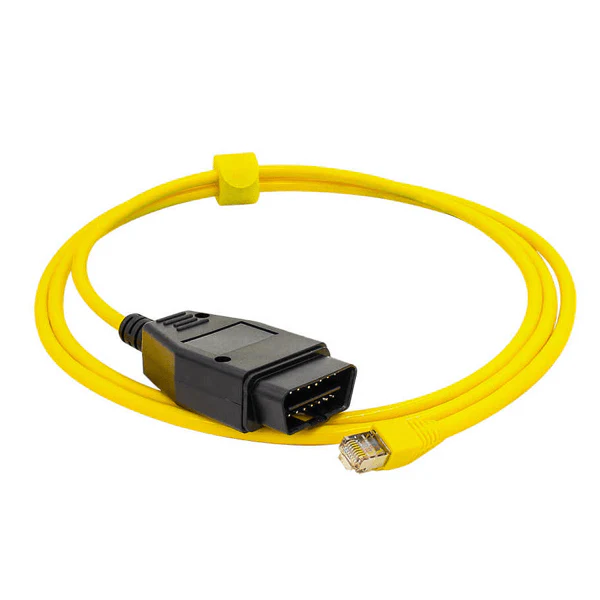

The BMW ENET cable (Ethernet to OBD-II interface) is a high-speed diagnostic and programming tool designed for BMW F-series, G-series, and some E-series vehicles. It connects your vehicle’s OBD-II port to a computer’s Ethernet (RJ45) port, allowing advanced functions through BMW’s diagnostic software.

1. Purpose and Functionality:

The ENET cable enables direct communication between a BMW vehicle and a PC, primarily for:

• Vehicle Diagnostics

• ECU Programming & Coding

• Firmware Updates

• Data Logging & Real-Time Monitoring

• Customization of Hidden Features (e.g., digital speed readout, mirror folding)

2. Key Features:

• High-Speed Data Transfer: Ethernet interface supports fast communication, essential for ECU programming and large data transfers.

• Plug-and-Play Design: No external power source needed—just connect to OBD-II and Ethernet ports.

• Software Compatibility:

  • E-Sys – For programming and coding F/G-series.

  • INPA / NCS Expert – For diagnostics (some support with ENET and E-series).

  • ISTA+ (Rheingold) – Official BMW diagnostic tool for reading/clearing fault codes and service functions.

  • BimmerCode / BimmerTool (with adapters) – For smartphone-based coding.

3. Compatibility:

• BMW Models Supported:

  • F-Series: F10, F20, F30, etc.

  • G-Series: G20, G30, etc.

  • Some E-Series: Limited support when using INPA/NCS Expert with specific configurations.

• System Requirements:

  • PC with Ethernet port or adapter.

  • Windows OS (7/10/11) typically required for BMW software.

4. How to Use:

1. Install the required BMW software on your PC.

2. Connect the ENET cable:

   • OBD-II end to vehicle.

   • RJ45 end to PC.

3. Configure IP settings on your PC (usually static IP like 169.254.129.100).

4. Launch your BMW software (e.g., E-Sys, ISTA+).

5. Begin diagnostics, coding, or programming.

5. Advantages:

• Faster than traditional USB/serial OBD cables.

• Supports modern BMW platforms (F/G-series).

• Reliable for professional and DIY use.

• Cost-effective alternative to wireless solutions.

6. Cautions:

• Programming can brick ECUs if done incorrectly.

• Always back up original settings before making changes.

• Use trusted software and verified coding guides.
